Romidot with years of development and experience with hundreds of successful installations in Profiles Extrusion plants, have spurred the development of the Romidot RomiShape\DT-PVC system and redefined the meaning of Profile Inspection & Measurement when invented the concept of the RomiShape in 1994.

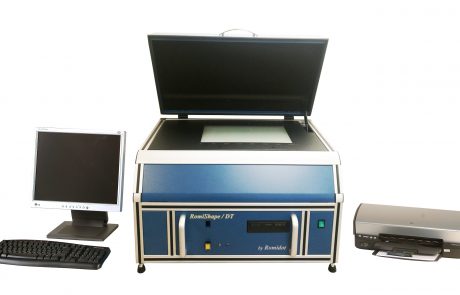

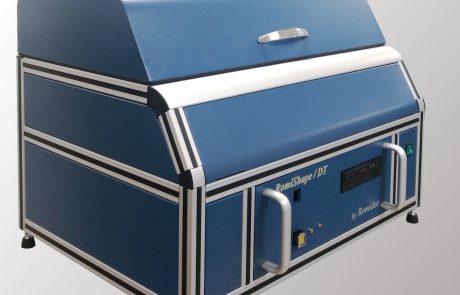

Romidot RomiShape\DT-PVC is desktop machine, a Scanner based concept for Profile Inspection and designed to be installed in the laboratory or rooms locates at the production floor.
Romidot RomiShape\DT-PVC utilizes a high resolution scanner technology that scans the cross section of the sample profile, directly with a Reflection mode (for bright and light colors) or with Backlight mode (for black or dark colors) or with a composite of the 2 modes (reflection and backlight) for profiles that includes several colors or different materials. The scanning area size of the machine is 290x200mm. The scanner technology requires a clean sample surface, with sharp edges no burrs and perpendicular cutting (for Backlight mode), as achieved by the Romidot Special Sample Saw machines Romidot SM420U and Romidot SM600.
RomiShape\DT-PVC system (same as other Romidot scanner based systems), is unique from the other competitive scanner systems concept. Romidot RomiShape systems are the only systems that working with a reflected and direct illumination concept, that brings accurate & true image-data of the profile cross section shape to the scanners camera. Romidot competitive systems, with scanner concept, working only with Back Light illumination, have a major shortfall. The shadow casted on the scanner surface, due to sample’s height inclination (non-perpendicularity to the surface), is equal to the entire systems accuracy or more and results in overall false results especially in small entities, this is the reason that the RomiShape\DT-PVC supplied together with the Romidot SM420U or SM600 sample preparation Saw machine, to minimize this effect in the Backlight mode.
The accuracy and the repeatability of the RomiShape\DT-PVC is ≤25µm and the measuring cycle time for the largest sample profile for all the entire scanning area size is ≤45sec while for typical sample size, measuring cycle time is ≤18sec.
Romidot RomiShape\DT-PVC system installed integrally with the Romidot Shadow application – including Romidot DimPack an engineering application for prepare the measuring programs for automatic inspection, Romidot ViewPack for remote viewing & measurement, and Romidot StatPack application – an automatic SPC application that allows in “one click” to get full SPC reports and Graphs.
Romidot RomiShape\DT-PVC system can work as a stand-alone machine or in configuration of plant corporate network.
Features & Benefits
Simplified sample preparation – eliminates sensitivity to sample condition and operator variance.
High accuracy and repeatability – ensures compatibility with tight tolerances and complex dimensions.
Extremely fast cycle time – fast reaction to situations and no time loss.
No sample setup, referencing or focusing, simply place the sample in the cradle against the glass – easy to operate and free of operator error and variance.
Automatic measurement with PASS / FAIL decision support and detailed measurement reports – provides fast response on the production floor to help react quickly and eliminate scrap and losses.
Automatic archiving of profiles’ images and dimensions reports – traceability and compatibility with quality managements standards and procedures.
Network operation – real time distribution of quality related information throughout the plant.
Rugged design and few moving parts – reliable operation in production conditions.
|Accuracy & Repeatability (*)||±10µm (±0.0004”)|
|Measuring Time||4 sec|
|Optics||300mm Telecentric lens with high resolution camera|
|Illumination type||Red LED Rings|
|Image acquisition||High resolution camera with Direct & Reflection cross section Image acquisition|
|System Location||Near the Extrusion press in the production floor environment|
|System stabilization elements||Granite slab & special shock observers|
|Sample length||80 – 400mm (3.2” – 15.7”)|
|System dimensions (L x W x H)||1930x660x1300mm (76”x26”51”)|
|Electricity||220V~240VAC (10A) 110V (16A)|
|Operating System||Win10Pro 64bits|
|Basic mode Software applications||Romidot Vision Romidot StatPack|
