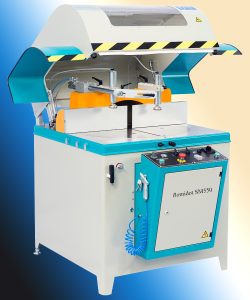

Romidot SM550 Sample Saw is specially developed for fast and precision cutting of samples from extruded profiles. The Saw includes all the necessary features of Burr free, no deformation and unique cross-sectionsurface to ensure fast , reliable and repeatable sample preparation for the Romidot RomiShape and Romidot Vision automatic inspection system.
The SM550 is equipped with 550mm diameter Blade. The blade is especially suitable for cutting Aluminum profiles in soft condition before aging /heat – treatment, as well hard condition, solid profiles and thin- wall thickness profiles. Blade lubrication, and pneumatic vertical and horizontal clamping with adjustable pressure are included as standard.
The SM550 is designed and built to conform with modern safety standards and regulations and is CE approved and UL listed.
The whole system of the SM550 designed especially to fit the requirements of Romidot Measuring systems and bring the best cutting results for the samples profiles without profile deformations, burr-free, smooth and clean sample surface, with sharp edges.
Standard Accessories
- Equipped with saw blade 550mm & 4KW motor
- Spray saw blade lubrication system
- 2 x Vertical and 1 x Horizontal clamps
- Air gun
Technical specifications:
| Features | Specification |
|---|---|
| Electrical Connections | 3 phases 208/380/400/480 volts , 50/60Hz. |
| Electric motor | 4KW (5.5Hp), 8.3A, 2400 r.p.m (50Hz) |
| Compress air requirements | 6 – 8 bar (90-117 p.s.i), 180 Litter/Min |
| Blade | External Dia. 550 mm (21.7”), Bore Dia. 30mm |
| Clamping | 2 vertical & 1 horizontal pneumatic clamps, adjustable pressure |
| Lubrication | Automatic, emulsion type (PVR518 or Castrol Aluzol B) |
| Maximum profile size | See cutting range diagram. |
| System dimensions (W x D x H) | 1060 mm x 1310 mm x 1560 mm (41.7” x 51.6” x 61”) |
| Weight | 320 Kg.(704 lb) |

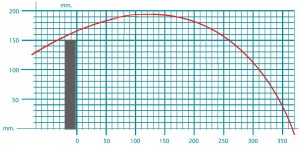

Cutting Range Diagram
